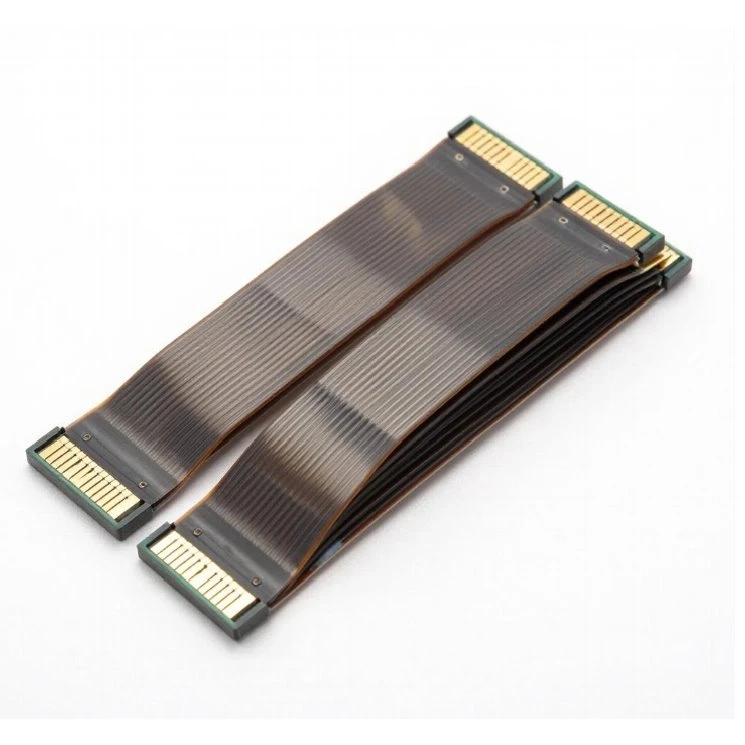

Custom LED Ratidza FFC Cable Solutions|OEM / ODM Mugadziri
Kuvimbika kwe LED Ratidza FFC Cable mhinduro dzakagadzirirwa kufambiswa kwezviratidzo zvakatsiga, compact electronic dhizaini, uye{0}}nguva refu maindasitiri maapplication.
Isu tinogadzira-Flexible Flat Cables (FFC) dzemhando yepamusoro dzemaLED display modules, digital signage systems, industry displays, uye zvemagetsi pasi rose. Tichitsigirwa neISO9001 quality management, mitsetse yekugadzirwa kwepamusoro, uye kuomesera-kuyedzwa kwematanho akawanda, tinotsigira vatengi vepasi rose veOEM neODM kubva pakukurumidza kugadzirwa kweprototype (samples dzakagadzirirwa mukati memazuva 7) kusvika pakukura-kugadzirwa kwehuwandu.
Zvidimbu zvehunyanzvi
Yese LED inoratidzira purojekiti ine yakasarudzika dimension uye yekubatanidza zvinodiwa. Isu tinopa yakakwana yekugadziridza sarudzo inoenderana nehunyanzvi paramita pazasi:
|
Item |
Specification Details |
|
Product Type |
LED Ratidza Flexible Flat Cable (FFC) |
|
Muitisi Material |
Yakakwirira{{0}kuchena annealed copper / Tin-copper yakapfatwa |
|
Pitch Options |
0.3mm / 0.5mm / 0.8mm / 1.0mm / Yakagadzirirwa |
|
Pin Count |
4 kusvika 100+ mapini |
|
Insulation Material |
PET (Polyethylene Terephthalate) |
|
Cable Length & Hukobvu |
Yakagadzirirwa zvizere kune zvinodiwa zveprojekiti |
|
Contact Type |
Same side / Opposite side / Musanganiswa masisitimu |
|
Connector Kugarisana |
Inopindirana neyakajairwa uye yakajairwa FFC / FPC zvibatanidza |
|
Operating Temperature |
-30 madhigirii kusvika +80 madhigirii (Madhigirii emhando yepamusoro-soro aripo) |
Key Product Advantages
High Flexural Endurance:Yakagadzirwa nePET insulation yemhando yepamusoro uye yakakwira-mhangura yekuchena kuti ishingirire kukotama yakadzokororwa uye kufamba-famba pasina kuneta kana kutsemuka.
Superior Signal Kutendeseka:Chaiyo conductor alignment uye inodzorwa impedance inoderedza kukanganiswa kwemagetsi (EMI) uye kurasikirwa kwechiratidzo, kubvisa kupenya kwemifananidzo uye kukanganisa kwedata.
Complete Design Flexibility:Saizi inosarudzika zvizere, pini kuverenga, kureba kwetambo, yekusimbisa zvimisikidza, uye zvimiro zvematanho kuti zvikwane zvakasimba, zvakavharirwa geometries.
Mari-Inoshanda OEM/ODM Scalability:Mitsetse yekugadzira michina yepamberi inoita kuti pave nebatch yakakwirira-ku{1}}kuenderana, kudzikisa mitengo yese yekutenga nekutenga{2}}huwandu hwekushandisa.
Target Applications
LED Display Modules
Kuvharisana kwemukati pakati pemapanera eLED, mabhodhi evatyairi, uye maseketi ekudzora ekutengesa uye maindasitiri skrini.
Digital Signage Systems
Wiring yemukati yezviratidziro zvekushambadza, zviratidziro zveruzivo neruzhinji, uye makiosks anodyidzana.
Industrial Display Equipment
Yakabatanidzwa mumaindasitiri ekudzora mapaneru, fekitori otomatiki hardware, uye HMI masisitimu.
Embedded Electronic Devices
Smart terminals uye inotakurika yekudzora michina inoda inovimbika inochinjika wiring.
Yedu Yakakwenenzverwa OEM / ODM Maitiro ekugadzirisa
Injiniya Ongororo
Ongororo yemadhirowa echigadzirwa, zvinodiwa zvemagetsi, miganho yemakanika, uye maratidziro ekubatanidza.
Rapid Prototyping
Sample kuendesa mukati memazuva manomwe kutsigira dhizaini yekuongorora uye gungano kuyedzwa.
Mass Production
Kugadzira kwakawanda kuchishandisa otomatiki chaiyo midziyo yekuenderana mhando uye yakavimbika nguva yekutungamira.
Rigorous Quality Control System
Chikwata chega chega chekugadzira chinoongororwa-matanho akawanda:
Raw Material Inspection
Yakazara macheki pane copper conductor kuchena, PET insulation zvivakwa, uye chinongedzo chekubatanidza.
Production Process Monitoring
Chaiyo-nguva yekutevera kurongeka kwekondukita, kusimba kwelamination, uye nedimensional kurongeka pamitsetse yekuchenesa.
Yemagetsi Performance Testing
100% kuyedza kuenderera mberi kwemagetsi, kugadzikana kwekuramba, kuita kwekudzivirira, uye voltage inomira.
Yekupedzisira Kutumirwa Kuongorora
Zvitarisiko, diki, uye kutumira kunze{0}giredhi macheki ekurongedza isati yatumirwa.
Kuteerera & Global Delivery
Mitemo
RoHS inoenderana, REACH inoenderana, UL inozivikanwa zvinhu zviripo pakukumbira, uye ISO9001 yakasimbiswa kugadzira.
Packaging & Logistics
Anti-static protective packaging, clear batch labeling, uye flexible shipping terms (FOB, CIF, EXW) akagadzirirwa kuparadzirwa pasi rose.
FAQ
Q: Ndedzipi pitch uye pini kuverenga sarudzo dziripo?
A: Nzvimbo dzakajairwa dzinosanganisira 0.3mm, 0.5mm, 0.8mm, uye 1.0mm, ine tsika yepitch sarudzo inowanikwa pakukumbira. Pini kuverenga kubva pa4 kusvika pamusoro pe100 mapini zvichibva pane zvaunoda dhizaini.
Q: Zvinotora nguva yakareba sei kuti uwane prototype samples?
A: Isu tinopa kukurumidza kugadzirwa kwemuenzaniso nemaprototypes akagadzirira mukati memazuva manomwe zvichitevera kusimbiswa kweinjiniya kudhirowa.
Mubvunzo: Ndeupi hushoma hwekuraira huwandu (MOQ) hwetambo dzeFFC?
A: Tinopa zvinochinjika zveMOQ sarudzo dzakagadzirirwa kugarisa zvese zvidiki-zvikero prototype run uye yakakwirira-huwandu hwekugadzira huwandu. Bata isu neruzivo rwepurojekiti yako kune zvimwe zvinodiwa.
Mubvunzo: Ko tambo dzako dzeFFC dzinoenderana nemitemo yezvakatipoteredza here?
A: Hongu. Zvese zvigadzirwa zvinoshandisa RoHS uye REACH zvinhu zvinoenderana, uye UL dzinozivikanwa sarudzo dziripo pakukumbira.
